Large Multi-Shape Steel Disc Cutter Set, 4 Punches, 15-24 mm, Jewellery Making Tool

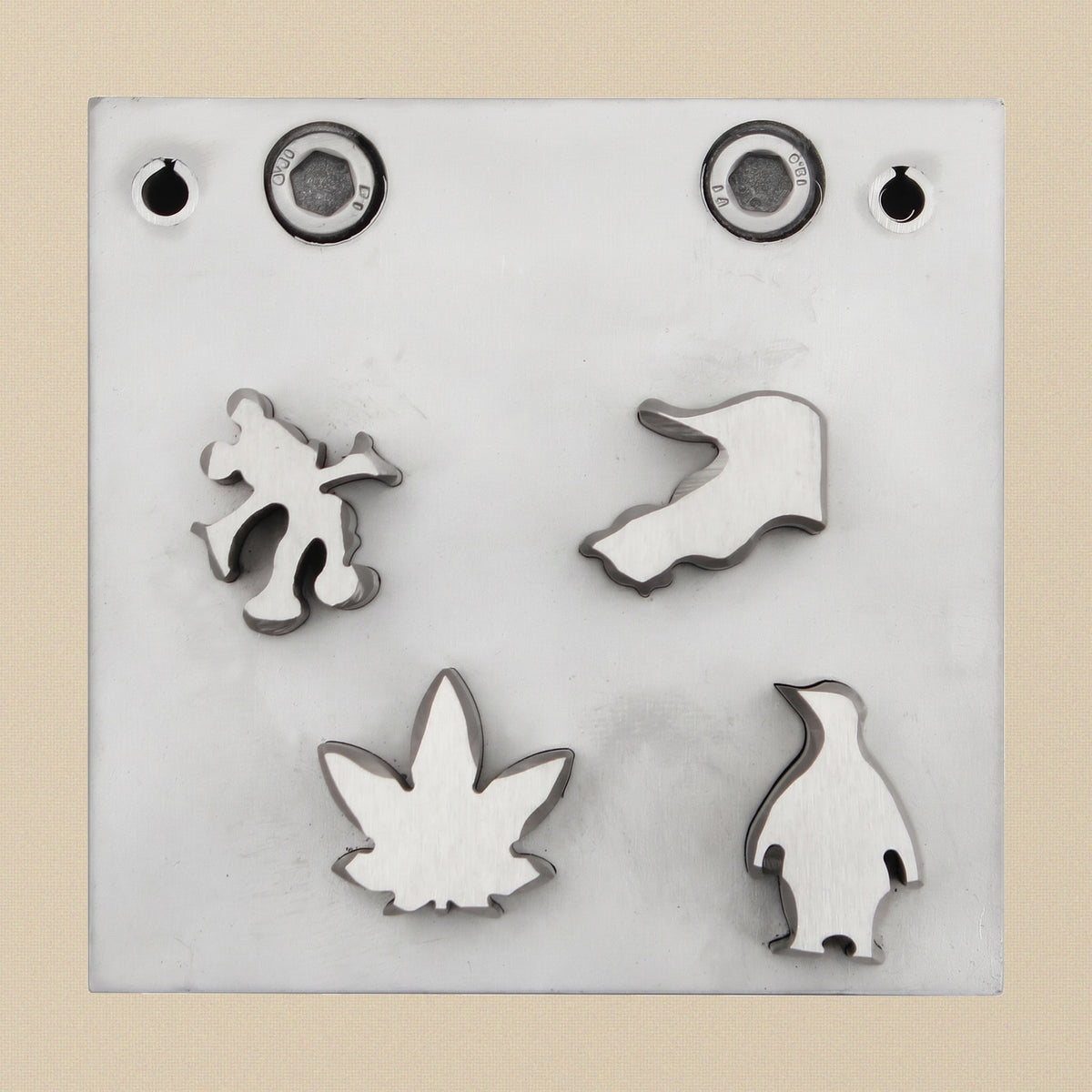

This disc cutter set allows you to punch four distinct large shapes from soft sheet metal. The set includes a solid steel die block and four matching punches, designed for creating clean, repeatable blanks for jewellery and craft projects. The punches are bevelled on one end for striking with a mallet or hammer, and precision-ground on the other for a sharp cut.

Constructed from hardened and tempered carbon tool steel, this tool is built for repeated use on non-ferrous metals like silver, gold, copper, and brass up to 18 gauge (approx. 1.02 mm). The die block is a stable 76 x 76 mm (3 x 3 inch) square. The four punch shapes measure approximately 17.99 x 21.35 mm, 23.86 x 15.26 mm, 21.33 x 17.82 mm, and 21.70 x 21.86 mm. For best results and to prolong the life of the cutting edges, we recommend using a cutting lubricant.

Use cases:

• Creating unique pendant or earring blanks from silver sheet.
• Producing decorative metal components for model making.
• Stamping consistent shapes for small-batch craft production.

• Cuts four distinct large shapes from non-ferrous sheet metal up to 18 gauge.
• Punches and die block are machined from hardened and tempered carbon tool steel.
• Die block measures approximately 76 x 76 mm (3 x 3 inches).
• Includes four punches for shapes of approx. 18x21mm, 24x15mm, 21x18mm, and 22x22mm.
• Bevelled punch ends for striking; sharp ends for clean cutting of blanks.
