Implant surgery is the one area of dentistry where the instruments look more like engineering tooling than dental kit — hollow cutters, graduated tapers, screw-threaded compressors. That is because the job is different: you are not removing tissue so much as shaping and preserving bone. This guide explains what each instrument family in a cased implant kit actually does, and how those kits are put together. It is written for qualified clinicians choosing equipment, not as clinical technique guidance.
Trephines: the hollow-core drill

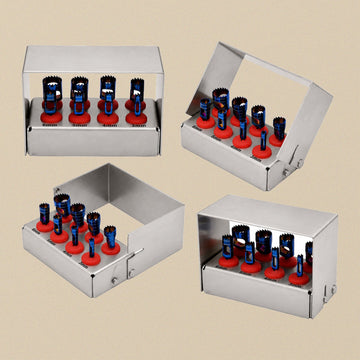

A trephine is a hollow cylindrical bur with cutting teeth around its rim. Because the centre is open, it cuts an annulus and leaves a solid core of bone standing inside — which is the entire point. That core can be harvested as an autogenous graft, or the trephine can be used to core out around a failed fixture for retrieval. Kits are sold as graduated sets so you can match the cutter to the core: our 8-piece cased sets run 3–10 mm, with a finer 2–5.5 mm bur set for smaller cores and tighter access. Look for concentric grinding (a trephine that runs even slightly eccentric will chatter), clear depth markings, and stainless that survives repeated cycles.
Osteotomes: compacting rather than cutting
Where a drill removes bone, an osteotome displaces it. Tapered instruments are advanced into the site so the surrounding trabecular bone is condensed outward, improving the density of the walls the implant will engage — the reason osteotomes earned their place in softer posterior maxillary bone. Sets come in straight and offset (convex) forms: straight for accessible sites, offset when the handpiece angle simply will not reach, typically a 10-instrument set in a roll or leather pouch. The working ends are the whole story here: they should be smoothly polished with crisply graduated diameters and legible depth marks, since the instrument is being read by feel and by eye at the same time.
Sinus-lift and bone-compression kits

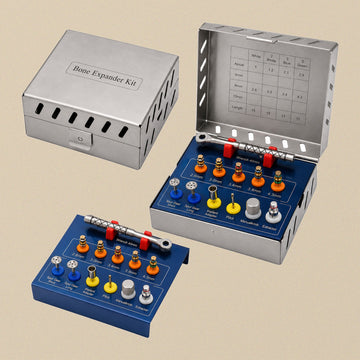

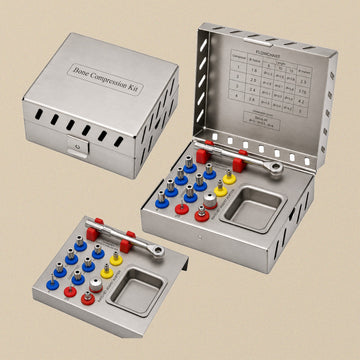

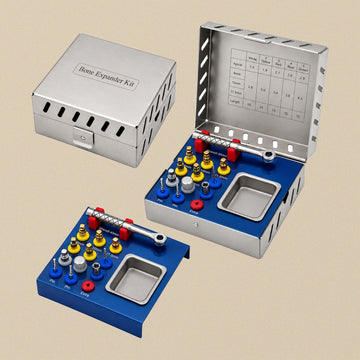

Crestal sinus approaches need their own family of instruments, and they are almost always bought as a cased system rather than piecemeal — our range runs from 12-piece and 17-piece sets up to versions supplied with saw disks for lateral-window work. A typical kit combines graduated compression instruments, stops or depth control, and the drivers that go with them. Bone compression screw kits extend the same idea: threaded instruments that expand a narrow ridge progressively rather than cutting it away. Buy the kit rather than the parts — the value is in the graduations being a matched series.
Why the case matters as much as the contents
Every kit worth owning arrives in a stainless sterilisation cassette or holder, and that is not packaging. It keeps a graduated series in order (a mixed-up osteotome set is a genuine hazard), it carries the whole system through ultrasonic, autoclave and chairside as one unit, and it stops fine cutting edges knocking together in a drawer. Check the cassette footprint against your autoclave chamber before you order, and confirm every instrument seats positively in its rail — a set that rattles will dull itself.
Buying checklist
- Graduated, matched series — sizes that step evenly, marked clearly enough to read under loupes.
- Concentric, sharp cutting edges on trephines; smooth, polished flanks on osteotomes.
- Autoclavable stainless throughout, cassette included and chamber-checked.
- Replaceable consumables — trephines are cutting tools and will eventually need renewing; plan for it.
As with any surgical instrument, these are supplied for use by appropriately trained and registered clinicians, and should be validated against your own practice's decontamination policy before first use.
